PC Strong Engineering Thermoplastic

Full name: polycarbonate Colours: white Layer Thickness: 0.013 inch (0.330 mm), 0.010 inch (0.254 mm), and 0.007 inch (0.178 mm) Support Structure: BASS, Soluble Tensile Strength: 9,800 psi (68 MPa) Tensile Elongation: 6.0% Flexural Stress: 15,100 psi (104 MPa) IZOD Impact, notched: 1.0 ft-lb/in (53 J/m) Heat Deflection: 280°F (138°C)

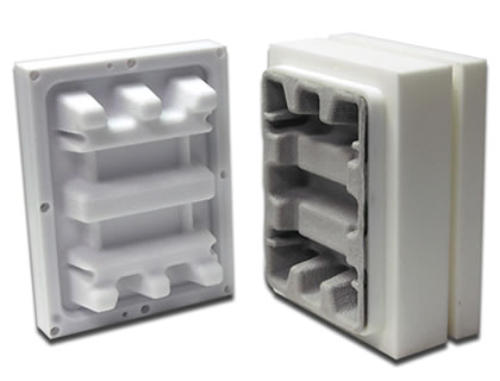

Click to enlarge

A true industrial thermoplastic, PC (polycarbonate) is widely used in automotive, aerospace, medical and many other applications. PC offers accuracy, durability and stability, creating strong parts that withstand functional testing. PC part is 5-60 percent stronger than a part made on previous FDM systems. It also has superior mechanical properties to ABS and a number of other thermoplastics

Material Benefits

Material Properties

Biocompatible (ISO 10993 USP Class VI ) material. Ideal for demanding prototyping needs, tooling and fixtures, and patterns for metal bending and composite work. Sterilizable using gamma radiation or ethylene oxide (EtO) sterilization methods.Best fit for applications requiring higher strength and sterilization. Breakaway or soluble support materials are available for PC.
