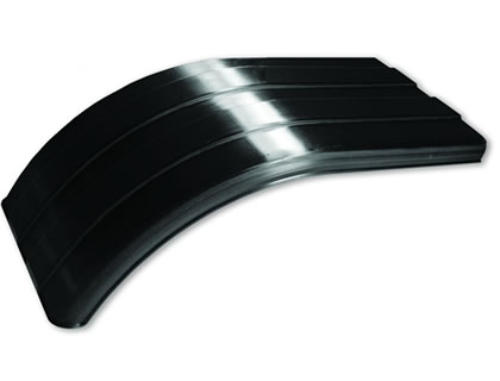

Ultem 9085 Image
ULTEM 9085 High Performance Material
Full Name: polyetherimide Colours: tan or black Layer Thickness: 0.013 inch (0.330 mm), and 0.010 inch (0.254 mm) Support Structure: BASS Tensile Strength: 10,390 psi (72 MPa) Tensile Elongation: 5.9% Flexural Stress: 16,700 psi (115 MPa) ZOD Impact, notched: 2.0 ft-lb/in (106 J/m) Heat Deflection: 333°F (167°C)
Click to enlarge
ULTEM   9085   is   a   flame   retardant   high   performance   thermoplastic   for   direct   digital   manufacturing and   rapid   prototyping.   It   is   ideal   for   the   transportation   industry   due   to   its   high   strength-to-weight ratio and its FST (flame, smoke, and toxicity) rating.
Material Benefits
FST (flame, smoke, toxicity) certified termoplastic. High     heat     and     chemical     resistance;     highest tensile       and       flexural       strength.       Ideal       for commercial       transportation       applications       in airplanes, buses, trains, boats, etc.
Material Properties
Data Sheet Download
Form Fit and Function End Use Parts
(403) 297-9793
(888) 297-9793

Eee Tee Digital Design Limited

3D Printing Services

Industrial 3D Printing Specialists

3d printing logo right
3d printing logo
Ultem 9085 Image Data Sheet Download
ULTEM 9085 High Performance Material
Full Name: polyetherimide Colours: tan or black Layer Thickness: 0.013 inch (0.330 mm), and 0.010 inch (0.254 mm) Support Structure: BASS Tensile Strength: 10,390 psi (72 MPa) Tensile Elongation: 5.9% Flexural Stress: 16,700 psi (115 MPa) ZOD Impact, notched: 2.0 ft-lb/in (106 J/m) Heat Deflection: 333°F (167°C)
Click to enlarge
ULTEM   9085   is   a   flame   retardant   high   performance   thermoplastic   for   direct digital   manufacturing   and   rapid   prototyping.   It   is   ideal   for   the   transportation industry   due   to   its   high   strength-to-weight   ratio   and   its   FST   (flame,   smoke, and toxicity) rating.
Material Benefits
FST      (flame,      smoke,      toxicity) certified termoplastic. High        heat        and        chemical resistance;    highest    tensile    and flexural       strength.       Ideal       for commercial             transportation applications   in   airplanes,   buses, trains, boats, etc.
Material Properties
Form Fit and Function End Use Parts
